Racing Formula MINI
We present to you a simple guide for assembling a basic racing formula. The model consists of 43 pieces, of which 26 are pins. We recommend printing the blocks from PLA, but the pins from PET-G. If you do not own a 3D printer, visit the website geekzoo.cz, where you can order the car. Otherwise, you can download the parts from Printables or through the parts catalog.

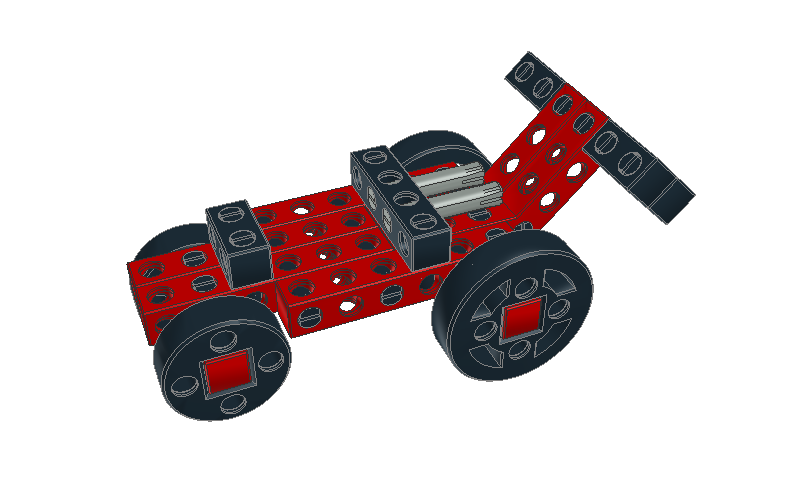

Visualization of the assembled Racing Formula MINI.
Parts
The blocks (beams) come in two colors, but feel free to be creative and build your formula in your own colors. The body of the formula consists of curved 4x4 pieces at a 45° angle. You will also need five 6x1 pieces and one 4x1 piece. Attach them together using the pins according to the instructions (steps 1 - 4).
Next, you will place the cockpit and the engine (step 5). The cockpit is made from a black 2x1 piece, and the engine is a black 4x1 piece, into which two longer plastic pins of size 3 are inserted. In Step 6, you will attach the wing and the wheels. The wing consists of black 6x1 pieces and two 2x1 pieces. The wheels are sizes 3 and 4, but other wheels will also work.

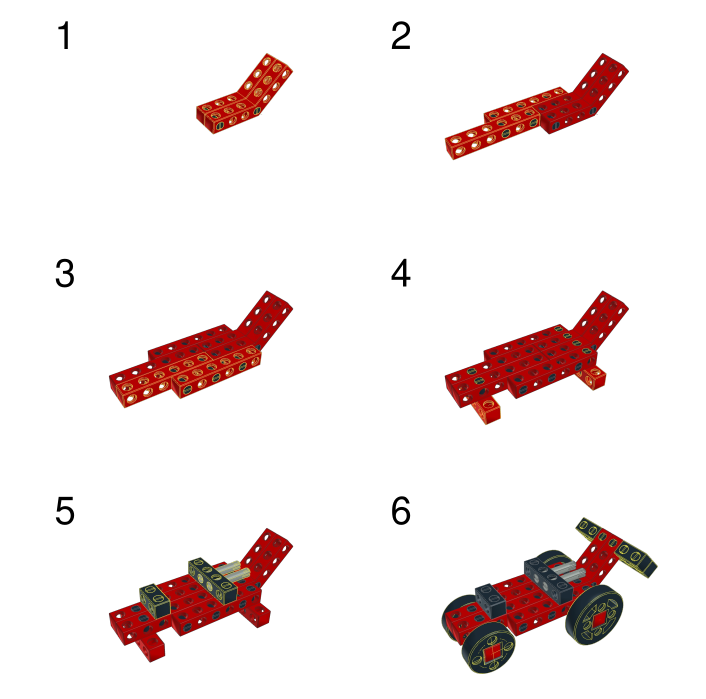

Assembly instructions for the MINI formula, steps 1 - 6.
Technical Specifications
| Parameter | Value |
|---|---|
| Length | 102 mm |
| Width | 48 mm |
| Height | 48 mm |
| Wheelbase | 56 mm |
| Weight | 36 g (without driver) |
| Engine | 0.6 ml, 2 cylinders, turbo |
| Power | 0.357 kW (0.48 HP) |
| Transmission | 8 speeds, virtual |
| Brakes | Invisible carbon discs, 6 pistons in front, 4 pistons in the rear |
| Fuel | Special racing fuel (warning: sugar may have destructive effects) |
| Fuel tank range | ≈ 2-10 km depending on the condition and age of the driver |
If the formula is intended for hovering, we recommend attaching the wheels horizontally. You will then need additional pins. However, the horizontal construction has not been tested! The maximum speed of the formula has also not been tested, and it may skid out of turns on slippery surfaces. In any case, we recommend wearing a helmet.
We disclaim any responsibility for any damages incurred during assembly or racing. The pit stop worker or the driver of the formula is fully responsible for them.
If there is a desire for multiple formula drivers to race, we recommend building more formulas in different colors.
